High Speed Extrusion and Laminating Machine For Nonwoven Fabric
| Model | XD-L1800 |
| Length of die lip | 2000(mm) |
| Width of raw material | 900-1700mm |
| Max. compounding speed | 100-150m/min |
| Thickness of extrusion film | 0.01-0.1mm |
| L/D ratio of screw | Φ140mm×32 |
| Max dia. of unwinding and rewinding | Φ1300mm |
| Overal size | 9600×9300×3200mm |
| Power | 130kw |
| Cool roll for glossy /compound | Φ510mm |
Main introduction

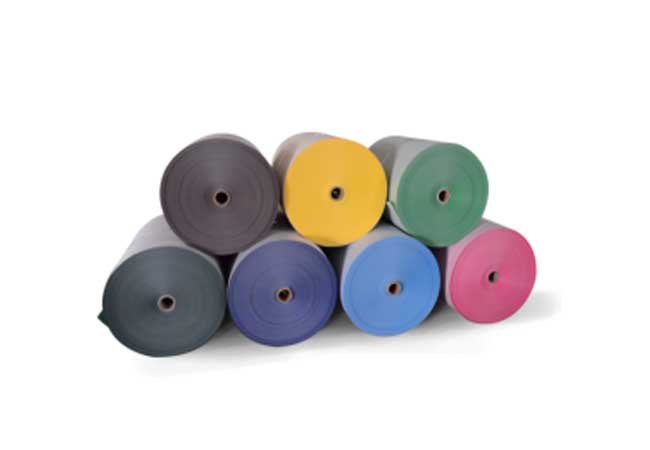

XD-L series hot melt adhesive laminating machine is used for producing self-adhesive products, such as self-adhesive tape, double-adhesive tape, foam tape, aluminum foil tape, clean tape, masking tape, etc. It also suitable for laminating different materials, such as non-woven, filter materials, shoes materials, medical material, label, film, etc.
- Product details
- Workshop
- Samples
- Loading
- Certificates
Lamination material requirement
1.Applicable coating film resin: Coating grade like LDPE, PP, EVA, EAA etc.

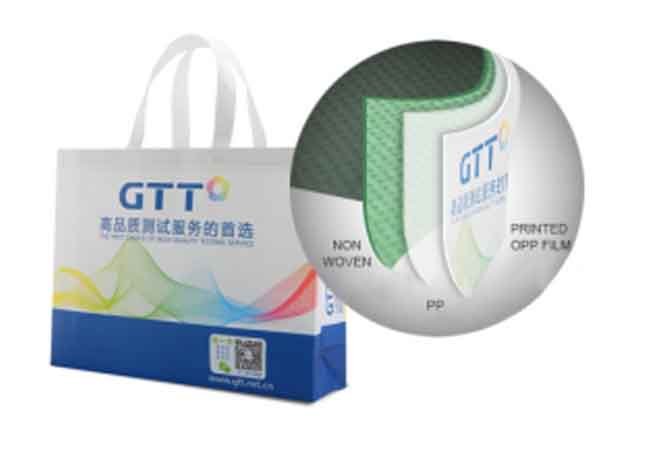

2.Based material: Non Woven Fabric, Paper (30~425g/m2 ) , Textile Fibre , Knited Mesh, BOPP, BOPET.
3.Inter-layer: Aluminium Foil, CPP, BOPP
About Xinda's factory
Workpieces, blanks, and tools should be neatly stored, stably and reliably, and stacked in categories to achieve fixed management. The floor of the workshop should be flat and tidy, the industrial waste and waste in the workplace will be cleaned up in time, and the safe passage of the workshop should be kept unobstructed at all times.
Our Service
After nearly a decade of development, with the continuous exploration, research, and application of advanced technology, the company’s existing talent structure is reasonable, with a number of the professional and technical backbone with high education and high title composition, the company’s production staff and sales and after-sales service team totaled more than a hundred people. When customers have problems, we will contact customers and solve the problem for the first time after receiving the after-sales notice, which makes the principle of customer-centered and customer demand the guide.
